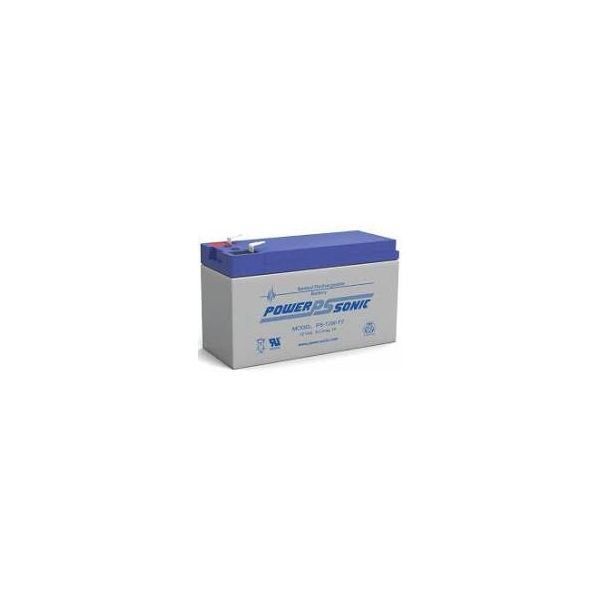

PS1290F2 Power-Sonic 12 Volt 9ah F2 terminals

Performance Specs
Nominal Voltage 12.0 Volts, (6.0 cells)
Nominal Capacity
20-hr. (0.45A to 10.5 Volts) 9.0Ah
10-hr. (0.85A to 10.5 Volts) 8.51Ah
5-hr. (1.57A to 10.2 Volts) 7.85Ah
1-hr. (5.98A to 9.6 Volts) 5.98Ah
Approximate Weight 5.56lbs, (2.52kg)
Dimensions
+/- 0.08 in. (+/- 2mm) for length,
width, and height dimensions
L: 5.94in, 151.0mm
W: 2.56in, 65.0mm
H: 3.7in, 94.0mm
TH: 3.94in, 100.0mm
Internal Resistance (approx.) mΩ 17.0mΩ
Max Short Circuit Discharge
Current
252.0A
Operating Temperature
Range
Charge −4°F (−20°C) to 104°F (40°C)
Discharge 5°F (−15°C) to 122°F (50°C)
Case ABS (UL94 HB or V-0 optional)
Recommended Power-Sonic
Charger
PSC-12500AC
